LTV-155E Photocoupler

LITE-ON

Description

Photocoupler Product Data Sheet LTV-155E Spec No.:DS70-2013-0016 Effective Date: 09/22/2022 Revision: D LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.
The LTV-155E optocoupler is ideally suited for driving power IGBTs and MOSFETs used in motor control inverter applications and inverters in power supp.

📥 Download Datasheet

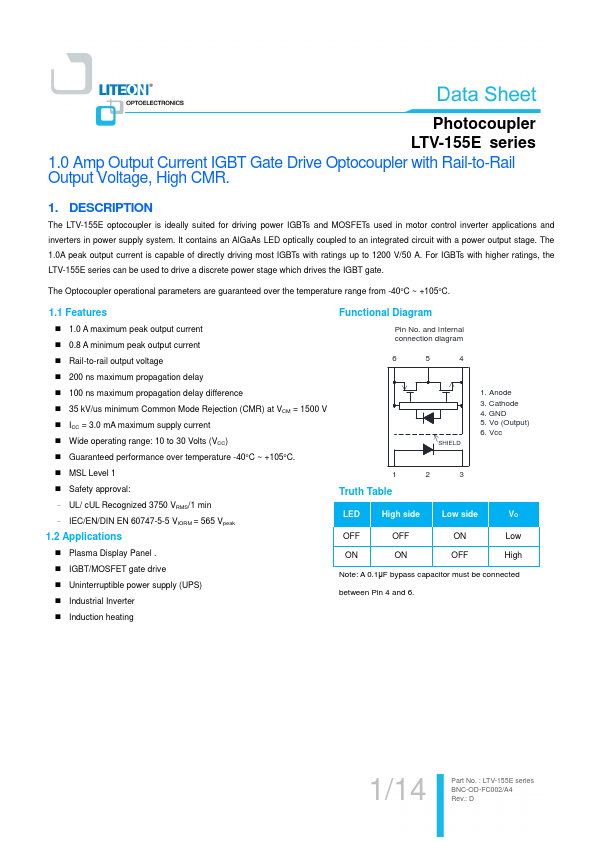

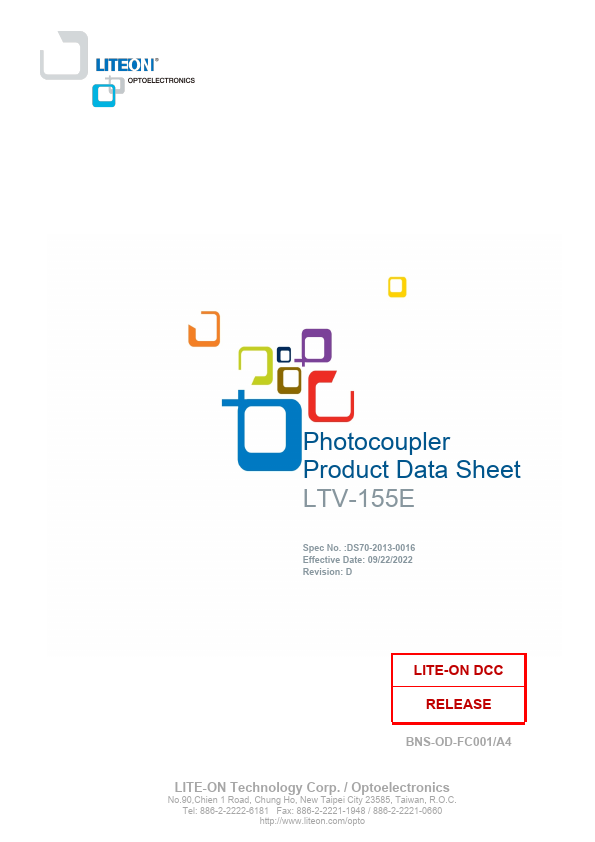

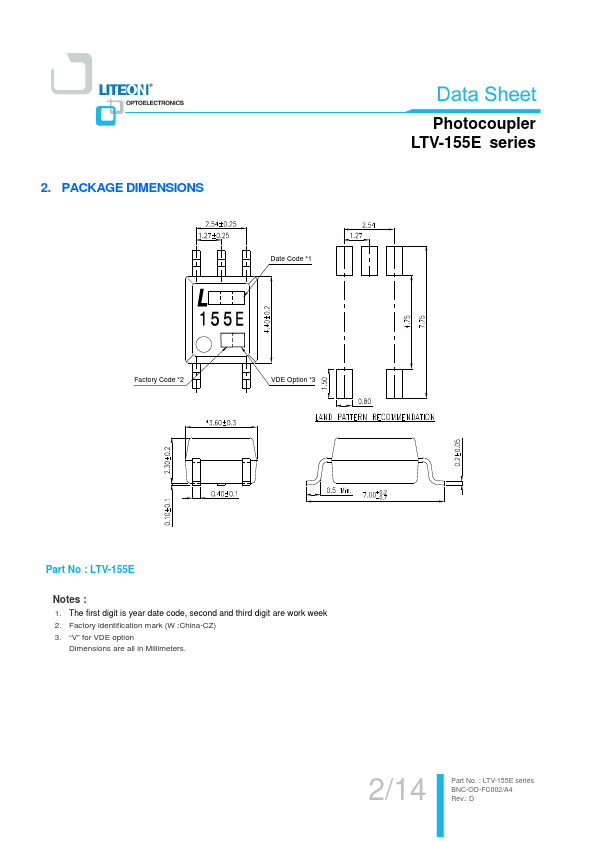

LTV-155E Datasheet Preview — Preview of LTV-155E PDF

Datasheet Specifications

Part number: LTV-155E
Manufacturer: LITE-ON
File Size: 382.20 KB
Datasheet: LTV-155E-LITEON.pdf
Description: Photocoupler

Features

* 1.0 A maximum peak output current
* 0.8 A minimum peak output current
* Rail-to-rail output voltage
* 200 ns maximum propagation delay
* 100 ns maximum propagation delay difference
* 35 kV/us minimum Common Mode Rejection (CMR) at VCM = 1500 V
* ICC = 3.0 mA maximum sup

Applications

* and inverters in power supply system. It contains an AlGaAs LED optically coupled to an integrated circuit with a power output stage. The 1.0A peak output current is capable of directly driving most IGBTs with ratings up to 1200 V/50 A. For IGBTs with higher ratings, the LTV-155E series can be used
