LTV-3213 Photocoupler

LITE-ON

Description

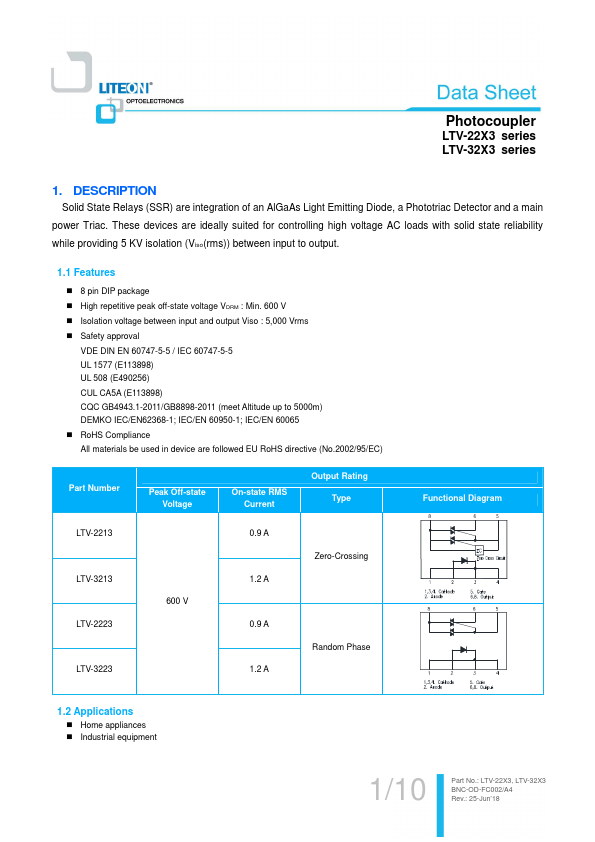

Photocoupler Product Data Sheet LTV-3213 Spec No.:DS70-2018-0163 Effective Date: 01/10/2019 Revision: A LITE-ON DCC RELEASE BNS-OD-FC001/A4 LITE-ON T.
Solid State Relays (SSR) are integration of an AlGaAs Light Emitting Diode, a Phototriac Detector and a main power Triac.

📥 Download Datasheet

LTV-3213 Datasheet Preview — Preview of LTV-3213 PDF

Datasheet Specifications

Part number: LTV-3213
Manufacturer: LITE-ON
File Size: 436.65 KB
Datasheet: LTV-3213-LITEON.pdf
Description: Photocoupler

Features

* 8 pin DIP package High repetitive peak off-state voltage VDRM : Min. 600 V Isolation voltage between input and output Viso : 5,000 Vrms Safety approval VDE DIN EN 60747-5-5 / IEC 60747-5-5 UL 1577 (E113898) UL 508 (E490256) CUL CA5A (E113898) CQC GB4943.1-2011/GB8898-2011 (meet Altitude up to 5000m)

Applications

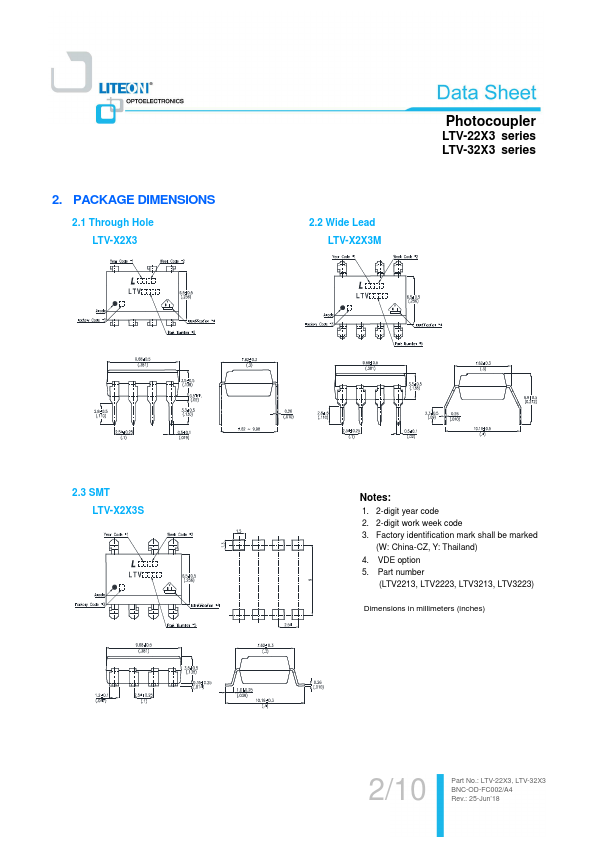

* Home appliances Industrial equipment 1/10 Part No. : LTV-22X3, LTV-32X3 BNC-OD-FC002/A4 Rev. : 25-Jun’18 2. PACKAGE DIMENSIONS 2.1 Through Hole LTV-X2X3 Photocoupler LTV-22X3 series LTV-32X3 series 2.2 Wide Lead LTV-X2X3M 2.3 SMT LTV-X2X3S Notes: 1. 2-digit year code 2. 2-digit work week code 3.
