S-LBSS4240LT1G - General Purpose Transistors

LRC

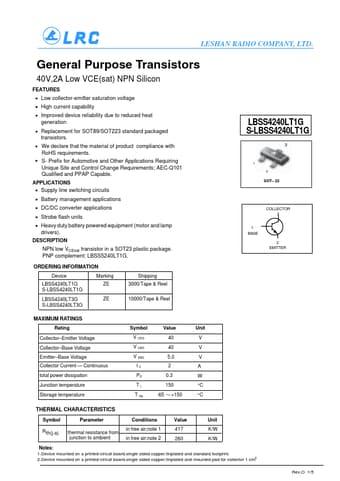

S-LBSS4240LT1G Datasheet Preview — Preview of S-LBSS4240LT1G PDF

Datasheet Details

Part number	S-LBSS4240LT1G
Manufacturer	LRC
File Size	220.64 KB
Description	General Purpose Transistors
Datasheet	S-LBSS4240LT1G-LRC.pdf

S-LBSS4240LT1G Product details

Description

NPN low VCEsat transistor in a SOT23 plastic package. 23 COLLECTOR 3 1 BASE 2 EMITTER MAXIMUM RATINGS Rating Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Continuous total power dissipation Ju

Features

Low collector-emitter saturation voltage.
High current capability.
Improved device reliability due to reduced heat generation.
Replacement for SOT89/SOT223 standard packaged transistors.
We declare that the material of product compliance with RoHS requirements.
S- Prefix for Automotive and Other.
