LD7750A - High Voltage Green-Mode PWM Controller

LD7750A Description

LD7750A 06/25/2010 High Voltage Green-Mode PWM Controller with Over Temperature Protection Rev.00 General .
The LD7750A integrates several functions of protections, and EMI-improved solution in a tiny package to minimize the component counts and the circuit.

LD7750A Features

* more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and OTP (Over Temperature Protection) to prevent the circuit being damaged under abnormal conditions. The LD7750A features built-in auto-recovery function for OVP on Vcc pin and OLP. Furthermore, the LD7750A features fr

LD7750A Applications

* z Switching AC/DC Adaptor and Battery Charger z Open Frame Switching Power Supply z LCD Monitor/TV Power Typical Application Leadtrend Technology Corporation LD7750A-DS-00 June 2010 1 www. leadtrend. com. tw Pin Configuration SOP-7 (TOP VIEW) SOP-8/DIP-8 (TOP VIEW) LD7750A HV VCC OUT HV NC VCC O

📥 Download Datasheet

Preview of LD7750A PDF

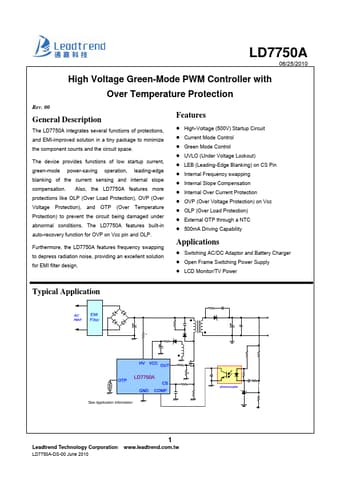

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LD7750A
Manufacturer
Leadtrend
File Size
438.48 KB
Datasheet
LD7750A-Leadtrend.pdf
Description
High Voltage Green-Mode PWM Controller
