LD7750E - High Voltage Green-Mode PWM Controller

LD7750E Description

LD7750E 02/29/2012 High Voltage Green-Mode PWM Controller with Over Temperature Protection Rev.00 General .
The LD7750E integrates several functions of protections, and EMI-improved solution in a SOP-7, SOP-8 or DIP-8 package to minimize the component counts.

LD7750E Features

* more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and OTP (Over Temperature Protection) to prevent the circuit being damaged under the abnormal conditions. The LD7750E features built-in auto-recovery function for OVP on Vcc pin and OLP. Features z High-Voltage (500V)

LD7750E Applications

* z Switching AC/DC Adaptor and Battery Charger z Open Frame Switching Power Supply z LCD Monitor/TV Power Typical Application AC input EMI Filter
* HV VCC OUT LD7750E OTP CS GND COMP
* photocoupler Leadtrend Technology Corporation LD7750E-DS-00 February 2012 1 www. leadtrend. com. tw P

📥 Download Datasheet

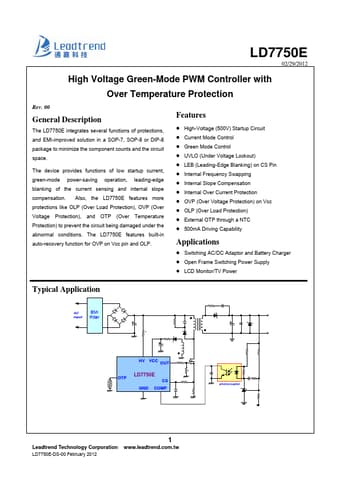

Preview of LD7750E PDF
