LD7710

HIGH POWER TRAVELING WAVE TUBE

LD7710 Features

* ™ Lightweight, Compact and Efficient The tube has a dual-depressed collectors and is designed to operate at high efficiency across the power output range. It features state-of-the-art techniques to optimize size and efficiency. ™ Low Distortion Distortion is a very important factor in multiplex digi

LD7710 General Description

The NEC LD7710 is a PPM focused traveling wave tube designed for final amplifier tube in the earth-to-satellite communication's transmitter. This is capable of delivering an output power of 40 W over the range of 13.75 to 14.5 GHz. It provides a mid power gain of 26 dB at 40 W level. Furthermore, th.

LD7710 Datasheet (124.66 KB)

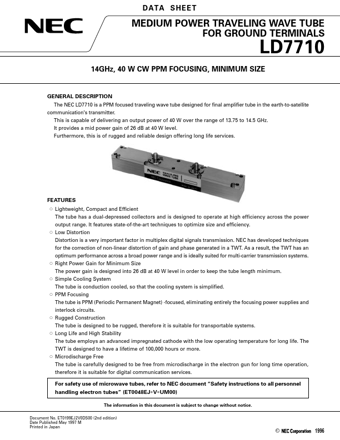

Preview of LD7710 PDF

Datasheet Details

Part number:

LD7710

Manufacturer:

NEC

File Size:

124.66 KB

Description:

High power traveling wave tube.
