LD7750RGN, LD7750R, High Voltage Green-Mode PWM Controller

LD7750R 05/12/2010 High Voltage Green-Mode PWM Controller with Over Temperature Protection Rev.00 General .
The LD7750R integrates several functions of protections, and EMI-improved solution in a SOP-7, SOP-8 or DIP-8 package to minimize the component counts.

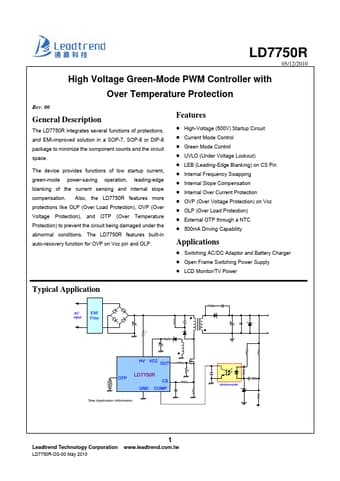

datasheet Preview Page 1 from Datasheet4u.com

LD7750R-Leadtrend.pdf

LD7750RGN Datasheet Preview — This datasheet PDF includes multiple part numbers: LD7750RGN, LD7750R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LD7750RGN, LD7750R

Manufacturer:

Leadtrend

File Size:

401.90 KB

Description:

High Voltage Green-Mode PWM Controller

Note:

This datasheet PDF includes multiple part numbers: LD7750RGN, LD7750R.
Please refer to the document for exact specifications by model.

Features

* more protections like OLP (Over Load Protection), OVP (Over Voltage Protection), and OTP (Over Temperature Protection) to prevent the circuit being damaged under the abnormal conditions. The LD7750R features built-in auto-recovery function for OVP on Vcc pin and OLP. Features z High-Voltage (500V)

Applications

* z Switching AC/DC Adaptor and Battery Charger z Open Frame Switching Power Supply z LCD Monitor/TV Power Typical Application Leadtrend Technology Corporation LD7750R-DS-00 May 2010 1 www. leadtrend. com. tw Pin Configuration SOP-7 (TOP VIEW) SOP-8 /DIP-8 (TOP VIEW) LD7750R HV VCC OUT HV NC VC C
