LD7713

HIGH POWER TRAVELING WAVE TUBE

LD7713 Features

* ™ Lightweight, Compact and Efficient The tube has a dual-depressed collectors and designed to operate at high efficiency across the power output range. It features state-of-the-art techniques to optimize size and efficiency. ™ Low Distortion Distortion is a very important factor in multiplex digital

LD7713 General Description

The NEC LD7713 is a PPM-focused traveling wave tube designed for use as final amplifier in the earth-tosatellite communications transmitter, LMDS (Local Multipoint distribution service) and other advanced communication systems. This is capable of delivering an output power of 20 W over the range of .

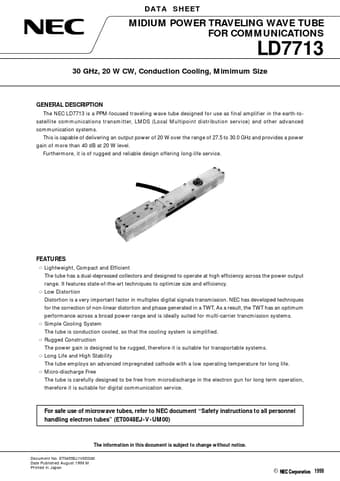

LD7713 Datasheet (54.02 KB)

Preview of LD7713 PDF

Datasheet Details

Part number:

LD7713

Manufacturer:

NEC

File Size:

54.02 KB

Description:

High power traveling wave tube.
