LESDA5VAW6T1G

Low Capacitance Quad Array

LESDA5VAW6T1G Features

* Uni-directional ESD protection of up to five lines

* Bi-directional ESD protection of up to four lines

* Low diode capacitance

* Low clamping voltage

* low leakage current

* IEC 61000-4-2; level 4 (ESD)

* IEC61000-4-5 (surge) ORDERING INFO

LESDA5VAW6T1G General Description

Low capacitance 5-fold ESD protection array in the very small SOT363 plastic package designed to protect up to five transmission or data lines from the damage caused by Electrostatic Discharge (ESD). LESDA5VAW6T1G Applications

* Cellular handsets and accessories

* Portable electroni.

LESDA5VAW6T1G Datasheet (789.47 KB)

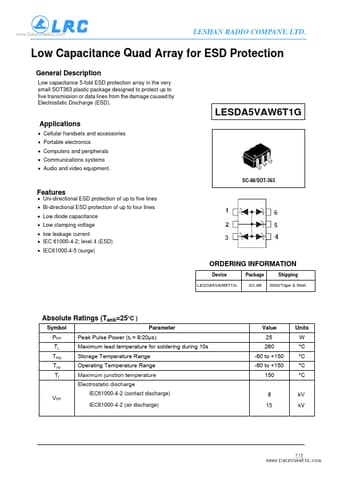

Preview of LESDA5VAW6T1G PDF

Datasheet Details

Part number:

LESDA5VAW6T1G

Manufacturer:

Leshan Radio Company

File Size:

789.47 KB

Description:

Low capacitance quad array.
