S-LBAT54HT1G - SCHOTTKY BARRIER DIODE

LESHAN RADIO COMPANY, LTD.

Schottky Barrier Diodes These Schottky barrier diodes are designed for high speed switching applications, circuit protection, and voltage clamping.

Extremely low forward voltage reduces conduction loss.

Miniature surface mount package is excellent for hand held and portable applications where space is limited.

Extremely Fast Switching Speed Low Forward Voltage 0.35 Volts (Typ) @ I F = 10 mAdc Device Marking: JV We declare that

S-LBAT54HT1G-LeshanRadioCompany.pdf

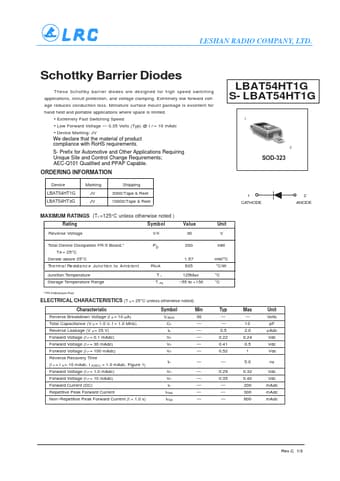

Preview of S-LBAT54HT1G PDF
S-LBAT54HT1G Datasheet Preview Page 2 S-LBAT54HT1G Datasheet Preview Page 3

Datasheet Details

Part number:

S-LBAT54HT1G

Manufacturer:

Leshan Radio Company

File Size:

242.93 KB

Description:

Schottky barrier diode.
