LT1176-5 Step-Down Switching Regulator

The LT®1176 is a 1A monolithic bipolar switching regulator which requires only a few external parts for normal operation. The power switch, all oscillator and control circuitry and all current limit components are included on the chip. The topology is a classic positive buck configuration but sever.

LT1176-5 Features

* n 1.2A Onboard Switch n 100kHz Switching Frequency n Excellent Dynamic Behavior n DIP and Surface Mount Packages n Only 8mA Quiescent Current n Preset 5V Output Available n Operates Up to 35V Input n Micropower Shutdown Mode APPLICATIONS n Buck Converter with Output Voltage Range of 2.5V to

LT1176_LinearTechnology.pdf

This datasheet PDF includes multiple part numbers: LT1176-5, LT1176. Please refer to the document for exact specifications by model.

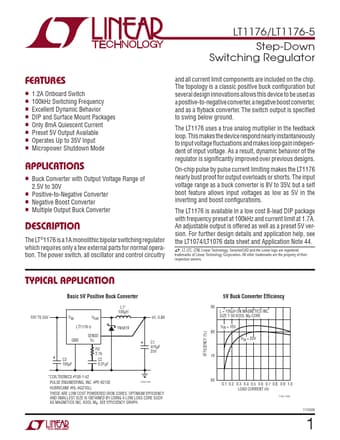

LT1176-5 Datasheet Preview Page 2 LT1176-5 Datasheet Preview Page 3

Datasheet Details

Part number:

LT1176-5, LT1176

Manufacturer:

Linear Technology

File Size:

129.08 KB

Description:

Step-down switching regulator.

Note:

This datasheet PDF includes multiple part numbers: LT1176-5, LT1176.
Please refer to the document for exact specifications by model.
