LT1208 Datasheet - Linear Technology

LT1208, Dual and Quad 45MHz/ 400V/us Op Amps

LT1208/LT1209 Dual and Quad 45MHz, 400V/µs Op Amps .

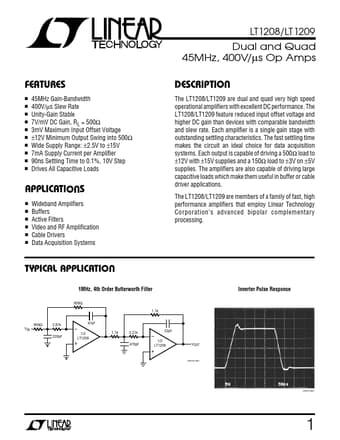

 datasheet Preview Page 1 from Datasheet4u.com

LT1208_LinearTechnology.pdf

Preview of LT1208 PDF

Datasheet Details

Part number:

LT1208

Manufacturer:

Linear Technology

File Size:

301.85 KB

Description:

Dual and Quad 45MHz/ 400V/us Op Amps

Features

* s s s s s s s s s s DESCRIPTIO 45MHz Gain-Bandwidth 400V/µs Slew Rate Unity-Gain Stable 7V/mV DC Gain, RL = 500Ω 3mV Maximum Input Offset Voltage ±12V Minimum Output Swing into 500Ω Wide Supply Range: ±2.5V to ±15V 7mA Supply Current per Amplifier 90ns Settling Time to 0.1%, 10V Step Drives All Ca

Applications

* The LT1208/LT1209 are members of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing. Wideband Amplifiers Buffers Active Filters Video and RF Amplification Cable Drivers Data Acquisition Systems TYPICAL APPLICATI 1MH
