LT1209 Dual and Quad 45MHz/ 400V/us Op Amps

LT1209 Description

LT1208/LT1209 Dual and Quad 45MHz, 400V/µs Op Amps .

LT1209 Features

* s s s s s s s s s s DESCRIPTIO 45MHz Gain-Bandwidth 400V/µs Slew Rate Unity-Gain Stable 7V/mV DC Gain, RL = 500Ω 3mV Maximum Input Offset Voltage ±12V Minimum Output Swing into 500Ω Wide Supply Range: ±2.5V to ±15V 7mA Supply Current per Amplifier 90ns Settling Time to 0.1%, 10V Step Drives All Ca

LT1209 Applications

* The LT1208/LT1209 are members of a family of fast, high performance amplifiers that employ Linear Technology Corporation’s advanced bipolar complementary processing. Wideband Amplifiers Buffers Active Filters Video and RF Amplification Cable Drivers Data Acquisition Systems TYPICAL APPLICATI 1MH

📥 Download Datasheet

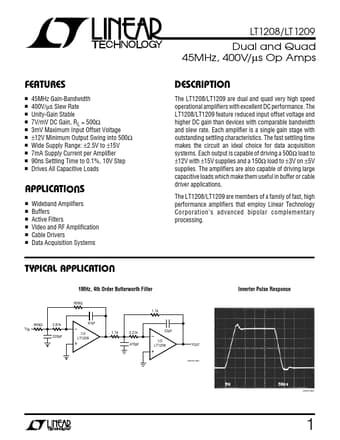

Preview of LT1209 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LT1209
Manufacturer
Linear Technology
File Size
301.85 KB
Datasheet
LT1209_LinearTechnology.pdf
Description
Dual and Quad 45MHz/ 400V/us Op Amps
