LTC2392-16 Datasheet, Adc, Linear Technology

LTC2392-16 Features

  • Adc n 500ksps Throughput Rate n ±2LSB INL (Max) n Guaranteed 16-Bit No Missing Codes n 94dB SNR (Typ) at fIN = 20kHz n Guaranteed Operation to 125°C n Single 5V Supply n 1.8V to 5V I/O

PDF File Details

Part number:

LTC2392-16

Manufacturer:

Linear Technology

File Size:

313.79kb

Download:

📄 Datasheet

Description:

500ksps sar adc. The LTC®2392-16 is a low noise, high speed 16-bit successive approximation register (SAR) ADC. Operating from a single 5V supply, the

Datasheet Preview: LTC2392-16 📥 Download PDF (313.79kb)

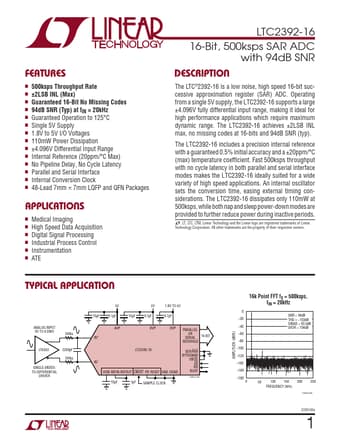

Page 2 of LTC2392-16 Page 3 of LTC2392-16

LTC2392-16 Application

  • Applications n Medical Imaging n High Speed Data Acquisition n Digital Signal Processing n Industrial Process Control n Instrumentation n ATE
