SP4045 - 1.5pF 24A Diode Array

SP4045 Description

TVS Diode Arrays (SPA®®Diodes) Lightning Surge Protection- SP4045 Series SP4045 Series 1.5pF 24A Diode Array (HDBaseT) RoHS Pb GREEN .
The SP4045 integrates low capacitance diodes with an additional zener diode to protect each I/O pin against ESD and high surge events.

SP4045 Features

* Signal-integrity-preservingl straight through routing
* Low leakage current of 1μA (MAX) at 3.3V
* ESD, IEC 61000-4-2, ±30kV contact, ±30kV air
* EFT, IEC 61000-4-4, 40A (5/50ns)
* Lightning, IEC 61000-4-5 2nd edition, 24A (8/20μs)
* Low capacitance

SP4045 Applications

* HDBaseT Protector
* 10/100/1000 Ethernet
* 2.5 and 5 Gigabit Ethernet
* T1/E1 Secondary Protection
* T3/E3 Secondary Protection
* A/V Equipment
* Automotive Ethernet Additional Information Datasheet Resources Samples Life Support Note:

📥 Download Datasheet

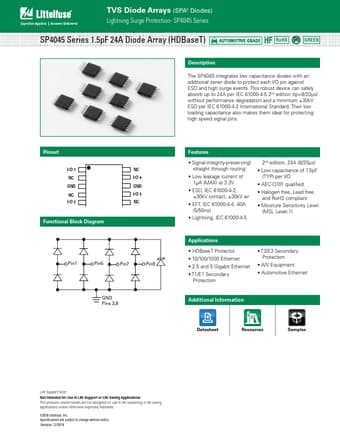

Preview of SP4045 PDF
datasheet Preview Page 2 datasheet Preview Page 3
