KBPC10005 - SILICON BRIDGE RECTIFIERS

Product Overview

📥 Download Datasheet

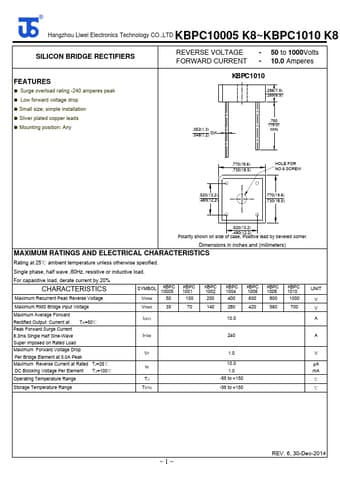

KBPC10005 SILICON BRIDGE RECTIFIERS by Liwei Electronics - Datasheet Preview — Datasheet preview – KBPC10005

Datasheet Details

Part number	KBPC10005
Manufacturer	Liwei Electronics
File Size	128.38 KB
Description	SILICON BRIDGE RECTIFIERS
Datasheet	KBPC10005 Datasheet
Additional preview pages of the KBPC10005 datasheet.

Product details

Features

Surge overload rating -240 amperes peak.
Low forward voltage drop.
Small size; simple installation.
Sliver plated copper leads.
Mounting position: Any K BP C1010 .296(7.5) .255(6.5) .052(1.3) .048(1.2) DIA. .750 (19.0) MIN .770(19.6) .730(18.5) HOLE FOR NO.6 SCREW .520(13.2) .480(12.2) .770(19.6) .730(18.5) .520(13.2) .480(12.2) Polarity shown on side of case, Positive lead by beveled corner. Dimensions in inches and (milimeters).
