LP6480 Datasheet - Lowpowersemi

16V/2A Synchronous Step-down Converter

LP6480 Features

* Input Voltage Range: 4.5V to 16V

* Output Voltage Range: 0.6V to 12V

* 2000mA Load Current on Channel

* Up to 96% Efficiency

LP6480 General Description

The LP6480 contains a independent 600KHz constant frequency, current mode, PWM step-down converters. The converter integrates a main switch and a synchronous rectifier for high efficiency without an external Schottky diode. The LP6480 is ideal for powering portable equipment that runs from a 2cell L.

LP6480 Datasheet (1.30 MB)

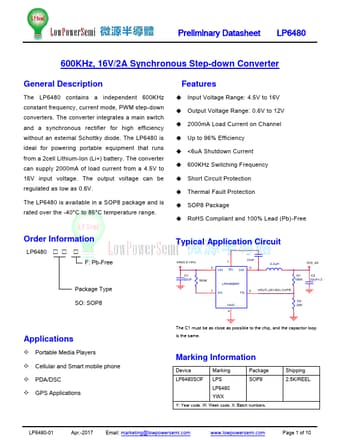

LP6480 Datasheet Preview — Preview of LP6480 PDF

Datasheet Details

Part number:

LP6480

Manufacturer:

Lowpowersemi

File Size:

1.30 MB

Description:

16v/2a synchronous step-down converter.
