LP6491

5A Step-down Converter

LP6491 Features

* Input Voltage Range: 9V to 35V

* Max Load Current : 5A

* Programmable Input and Output Current Limit

* Up to 95% Efficiency

* 100% Duty Cycle in Dropout

* 180KHz Switching Frequency

* Soft star Function

* Short Circuit Protection

* Current Mode Operation

* T

LP6491 General Description

The LP6491 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator designed to power 5V USB applications. A precise output voltage and programmable cable drop compensation maintain accurate 5V regulation at the USB socket connected to the end of a long cable. F.

LP6491 Datasheet (964.95 KB)

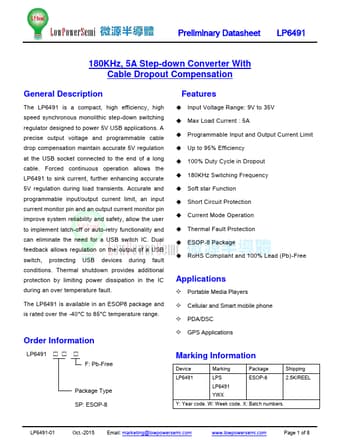

LP6491 Datasheet Preview — Preview of LP6491 PDF

Datasheet Details

Part number:

LP6491

Manufacturer:

Lowpowersemi

File Size:

964.95 KB

Description:

5a step-down converter.
