LP6498 600KHz 36V/1.2A Synchronous Step-down Converter

📥 Download Datasheet Datasheet Preview Page 1

Description

Preliminary Datasheet LP6498 600KHz 36V/1.2A Synchronous Step-down Converter General .
The LP6498 is a synchronous step-down regulator from a high voltage input supply.

📥 Download Datasheet

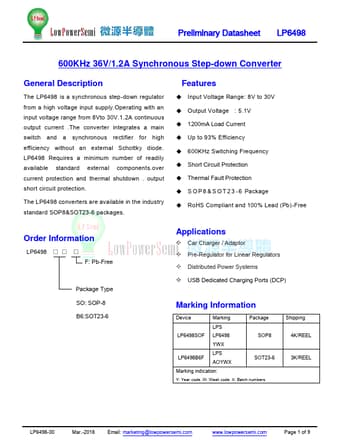

Preview of LP6498 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
LP6498
Manufacturer
Lowpowersemi
File Size
811.14 KB
Datasheet
LP6498-Lowpowersemi.pdf
Description
600KHz 36V/1.2A Synchronous Step-down Converter

Features

* Input Voltage Range: 8V to 30V
* Output Voltage ：5.1V
* 1200mA Load Current
* Up to 93% Efficiency
* 600KHz Switching Frequency
* Short Circuit Protection
* Thermal Fault Protection
* S O P 8 & S O T 2 3 - 6 Package
* RoHS Compliant and 100% Lead (Pb)-Free Orde

Applications

* Car Charger / Adaptor
* Pre-Regulator for Linear Regulators
* Distributed Power Systems
* USB Dedicated Charging Ports (DCP) Marking Information Device Marking Package LPS LP6498SOF LP6498 SOP8 YWX LPS LP6498B6F AOYWX SOT23-6 Marking indication: Y: Year code. W: Week co
