LP6496

Wide Range Synchronous Buck Controller

LP6496 Features

* include cable compensation, programmable current limit and thermal shutdown. The LP6496 converters are available in the industry standard SOP8 packages. Order Information LP6496

* F: Pb-Free Package Type SO: SOP8 Current Sense Voltage A: VCS=53mV B: VCS=65mV App

LP6496 General Description

The LP6496 is a synchronous step down regulator with CC control from a high voltage input supply. Operating with an input voltage 8V~40V, the LP6496 achieves 5A continuous output current with excellent load and line regulation. Current mode operation provides fast transient response and eases loop s.

LP6496 Datasheet (395.47 KB)

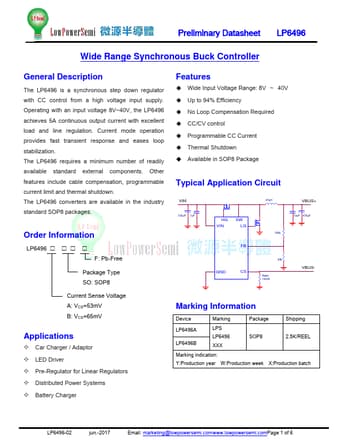

Preview of LP6496 PDF

Datasheet Details

Part number:

LP6496

Manufacturer:

Lowpowersemi

File Size:

395.47 KB

Description:

Wide range synchronous buck controller.
