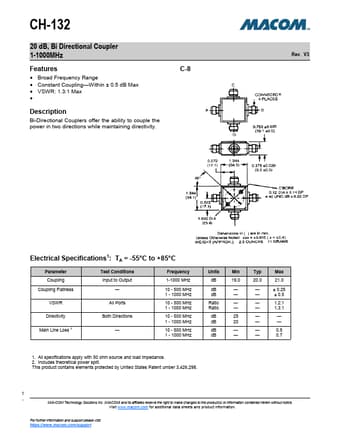

Part number: CH-132
Manufacturer: MA-COM
File Size: 408.61KB
Download: 📄 Datasheet
Description: Bi Directional Coupler
* Broad Frequency Range
* Constant Coupling—Within ± 0.5 dB Max
* VSWR: 1.3:1 Max
*
Description
Bi-Directional Couplers offer the ability to couple the po.
Bi-Directional Couplers offer the ability to couple the power in two directions while maintaining directivity.
C-8
Rev. V3
Electrical Specifications1: TA = -55°C to +85°C
Parameter Coupling Coupling Flatness
VSWR
Directivity
Main Line Loss 2
Tes.
