Part number: CH-134
Manufacturer: MA-COM
File Size: 604.54KB
Download: 📄 Datasheet
Description: Bi-Directional Couplers
* Constant Coupling - within ±0.5 dB max.
* MIL-STD-202 Screening Available
Description
Bi-Directional couplers offer the ability to couple the power in two direc.
Bi-Directional couplers offer the ability to couple the power in two directions while maintaining directivity.

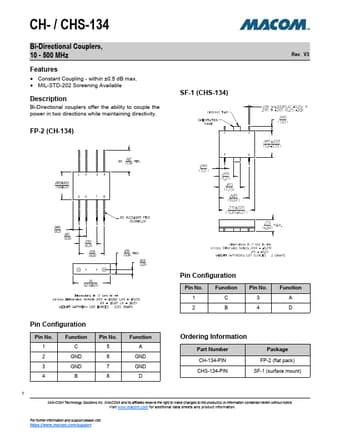

FP-2 (CH-134)
SF-1 (CHS-134)
Rev. V3
Pin Configuration
Pin No. 1 2 3 4
Function C
GND GND
B
Pin No. 5 6 7 8
Function A
GND GND
D
Pi.
