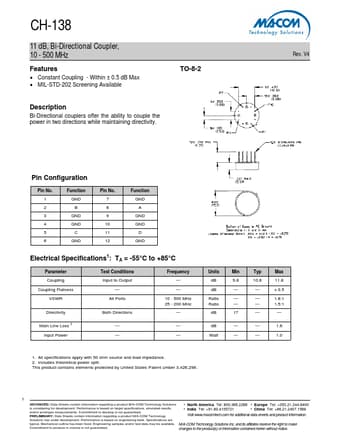

Part number: CH-138
Manufacturer: MA-COM
File Size: 52.22KB
Download: 📄 Datasheet
Description: Bi-Directional Coupler
* Constant Coupling - Within ± 0.5 dB Max
* MIL-STD-202 Screening Available
Description
Bi-Directional couplers offer the ability to couple the power in two direc.
Bi-Directional couplers offer the ability to couple the power in two directions while maintaining directivity.
TO-8-2
Rev. V4
Pin Configuration
Pin No. 1 2 3 4 5 6
Function GND B GND GND C GND
Pin No. 7 8 9 10 11 12
Function GND A GND GND D GN.
Image gallery
