CH-101 Datasheet - TDK

CH-101 ultra-low-power ultrasonic Time-ofFlight (ToF) range sensor

CH-101 Datasheet DS-000331 CH-101 Datasheet Chirp Microsystems reserves the right to change specifications and information herein without notice. Chirp Microsystems 2560 Ninth Street, Ste 200, Berkeley, CA 94710 U.S.A +1(510) 640 8155 www.chirpmicro.com Document Number: DS-000331 Revision: 1.0 Release Date: 09/30/2019 GENERAL INFORMATION The CH-101 is a miniature, ultra-low-power ultrasonic Time-ofFlight (ToF) range sensor. Based on Chirp’s patented MEMS technology, the CH-101 is a.

CH-101 Features

* Fast, accurate range-finding

* Operating range from 4 cm to 1.2 m

* Sample rate up to 100 samples/sec

* 1.0 mm RMS range noise at 30 cm range

* Programmable modes optimized for medium and short-range sensing applications

* Customizable field of view (FoV) up to 180°

* M

CH-101 Datasheet (1.59 MB)

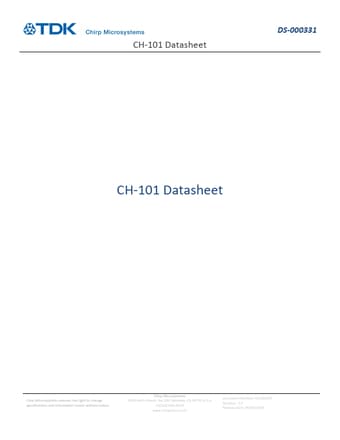

Preview of CH-101 PDF
CH-101 Datasheet Preview Page 2 CH-101 Datasheet Preview Page 3

Datasheet Details

Part number:

CH-101

Manufacturer:

TDK

File Size:

1.59 MB

Description:

Ultra-low-power ultrasonic time-offlight (tof) range sensor.
