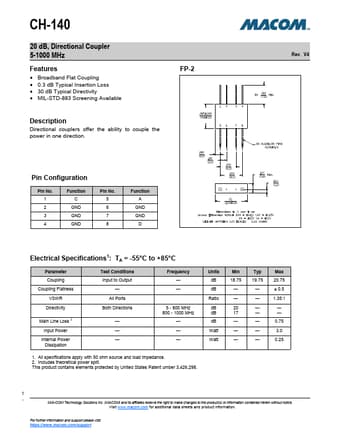

Part number: CH-140
Manufacturer: MA-COM
File Size: 486.17KB
Download: 📄 Datasheet
Description: Directional Coupler
* Broadband Flat Coupling
* 0.3 dB Typical Insertion Loss
* 30 dB Typical Directivity
* MIL-STD-883 Screening Available
Description
Directional couplers o.
Directional couplers offer the ability to couple the power in one direction.
FP-2
Rev. V4
Pin Configuration
Pin No. 1 2 3 4
Function C
GND GND GND
Pin No. 5 6 7 8
Function A
GND GND
D
Electrical Specifications1: TA = -55°C to +85°C
Parameter.
