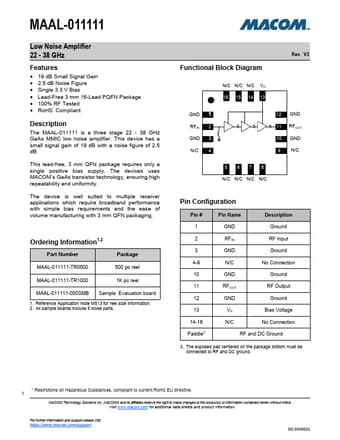

MAAL-011111 Datasheet, Amplifier, MA-COM

MAAL-011111 Features

• Amplifier
• 19 dB Small Signal Gain
• 2.5 dB Noise Figure
• Single 3.3 V Bias
• Lead-Free 3 mm 16-Lead PQFN Package
• 100% RF Tested
• RoHS

PDF File Details

Part number:

MAAL-011111

Manufacturer:

MA-COM

File Size:

678.35kb

Download:

📄 Datasheet

Description:

Low noise amplifier. The MAAL-011111 is a three stage 22 - 38 GHz GaAs MMIC low noise amplifier. This device has a small signal gain of 19 dB with a noise

MAAL-011111 Application

• Applications which require broadband performance with simple bias requirements and the ease of volume manufacturing with 3 mm QFN packaging. Orderi
