MAAL-011129

Low Noise Amplifier

MAAL-011129 Features

* Noise Figure: 2.5 dB @ 24 GHz

* High Gain: 23 dB @ 24 GHz

* 50 Ω match on input and output

* Single Voltage Bias: 3 V to 5 V range

* Integrated Active Bias Circuit

* Current adjustable from 1 mA - 80 mA

* Lead-Free 2 mm 8-lead PDFN Package

* Halogen-Free “Green” Mol

MAAL-011129 General Description

The MAAL-011129 is an easy-to-use three stage low noise amplifier with high gain and broadband 50 Ω match. It is designed for operation from 18 to 31.5 GHz and housed in a lead-free 2 mm 8-lead PDFN plastic package. The MAAL-011129 has an integrated active bias circuit and bias tee to allow direct c.

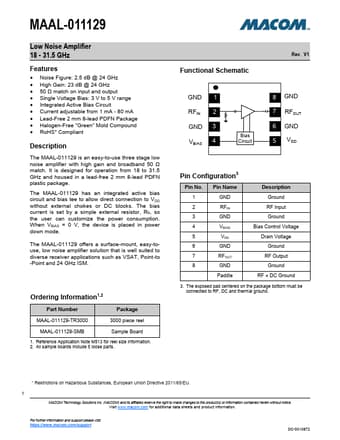

MAAL-011129 Datasheet (1.07 MB)

Preview of MAAL-011129 PDF

Datasheet Details

Part number:

MAAL-011129

Manufacturer:

MA-COM

File Size:

1.07 MB

Description:

Low noise amplifier.
