MAAL-011119

Satellite TV Amplifier

MAAL-011119 Features

* 1.5 dB Noise Figure

* 32 dBm Output IP3

* Single +2.5 V Bias

* Lead-Free SC70 6-Lead (SOT-363) Package

* Halogen-Free “Green” Mold Compound

* RoHS

* Compliant and 260°C Reflow Compatible Description The MAAL-011119 is a broadband gain block GaAs MMIC amplifier assembled

MAAL-011119 General Description

The MAAL-011119 is a broadband gain block GaAs MMIC amplifier assembled in a lead-free SC70-6LD (SOT-363) surface mount plastic package. The topology is a monolithic single stage self-biased design featuring a convenient 50 Ω input/output impedance that minimizes the number of external components. T.

MAAL-011119 Datasheet (922.57 KB)

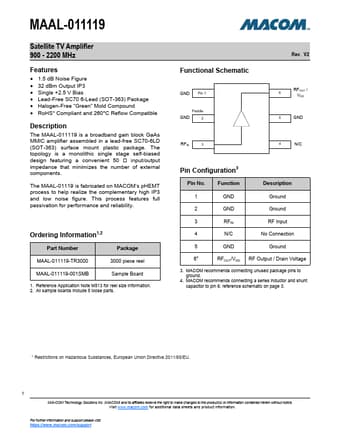

Preview of MAAL-011119 PDF

Datasheet Details

Part number:

MAAL-011119

Manufacturer:

MA-COM

File Size:

922.57 KB

Description:

Satellite tv amplifier.
