MAAL-011161 Datasheet - MACOM

Low Phase Noise Amplifier

MAAL-011161 Features

* Phase Noise: -169 dBc/Hz @ 10 kHz

* Gain: 14 dB

* Psat: +25 dBm

* Bias Voltage: VCC = +6 V

* Bias Current: ICQ = 100 mA

* 50  Matched Input and Output

* Positive Voltage Only

* Lead-Free 5 mm AQFN 32-lead Package

* RoHS

MAAL-011161 General Description

The MAAL-011161 is an easy to use low phase noise amplifier assembled in a lead-free 5 mm 32lead air cavity QFN plastic package. It operates from 2 - 18 GHz and provides -169 dBc/Hz phase noise, 14 dB gain and +25 dBm PSAT. The input and output are fully matched to 50  with typical return loss >10 .

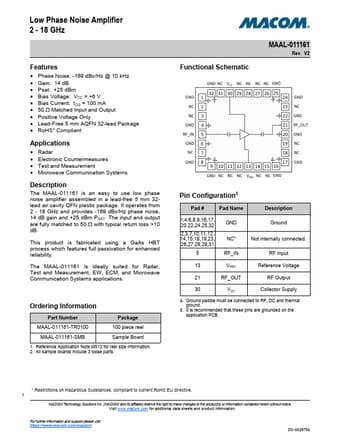

MAAL-011161 Datasheet (1.03 MB)

Preview of MAAL-011161 PDF

Datasheet Details

Part number:

MAAL-011161

Manufacturer:

MACOM

File Size:

1.03 MB

Description:

Low phase noise amplifier.
