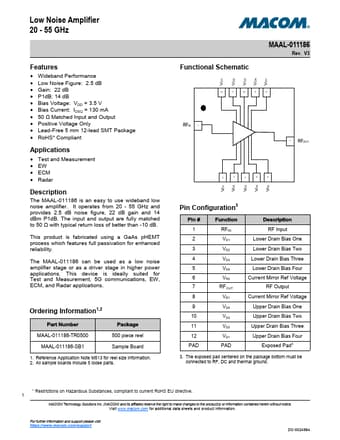

MAAL-011186 Datasheet, Amplifier, MACOM

MAAL-011186 Features

• Amplifier
• Wideband Performance
• Low Noise Figure: 2.5 dB
• Gain: 22 dB
• P1dB: 14 dB
• Bias Voltage: VDD = 3.5 V
• Bias Current: IDSQ = 130 mA <

PDF File Details

Part number:

MAAL-011186

Manufacturer:

MACOM

File Size:

848.84kb

Download:

📄 Datasheet

Description:

Low noise amplifier. The MAAL-011186 is an easy to use wideband low noise amplifier. It operates from 20 - 55 GHz and provides 2.5 dB noise figure, 22 dB

MAAL-011186 Application

• Applications
• Test and Measurement
• EW
• ECM
• Radar Description The MAAL-011186 is an easy to use wideband low no
