MAAL-011188 Datasheet, Lna, MACOM

MAAL-011188 Features

  • Lna
  • Broadband 2-Stage LNA
  • Gain: 35.2 dB @ 2.50 GHz 35.1 dB @ 3.75 GHz 35.2 dB @ 4.70 GHz
  • Noise Figure: 0.79 dB @ 2.50 GHz 0.86 dB @ 3.75 GHz 0.92 dB @ 4.70 GHz

PDF File Details

Part number:

MAAL-011188

Manufacturer:

MACOM

File Size:

741.38kb

Download:

📄 Datasheet

Description:

Broadband 2-stage lna. The MAAL-011188 is a compact surface mount, highly integrated 2-stage low noise amplifier (LNA). This LNA is designed for operation f

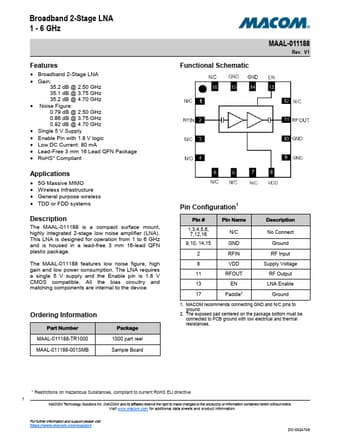

Datasheet Preview: MAAL-011188 📥 Download PDF (741.38kb)
Page 2 of MAAL-011188 Page 3 of MAAL-011188

MAAL-011188 Application

  • Applications
  • 5G Massive MIMO
  • Wireless Infrastructure
  • General purpose wireless
  • TDD or FDD systems Description

TAGS

MAAL-011188
Broadband
2-Stage
LNA
MACOM
