CG2H40010 Datasheet, Hemt, MACOM

CG2H40010 Features

  • Hemt
  • Up to 8 GHz Operation
  • 18 dB Small Signal Gain at 2.0 GHz
  • 16 dB Small Signal Gain at 4.0 GHz
  • 17 W typical PSAT
  • 70% Efficiency at PSAT

PDF File Details

Part number:

CG2H40010

Manufacturer:

MACOM

File Size:

942.02kb

Download:

📄 Datasheet

Description:

Rf power gan hemt. The CG2H40010 is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT). The CG2H40010, operating from a 28 vol

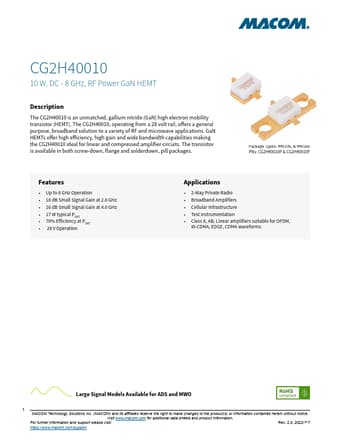

Datasheet Preview: CG2H40010 📥 Download PDF (942.02kb)
Page 2 of CG2H40010 Page 3 of CG2H40010

CG2H40010 Application

  • Applications GaN HEMTs offer high efficiency, high gain and wide bandwidth capabilities making the CG2H40010 ideal for linear and compressed amplif
