CG2H40120 Datasheet, Hemt, MACOM

CG2H40120 Features

  • Hemt
  • Up to 2.5 GHz Operation
  • 20 dB Small Signal Gain at 1.0 GHz
  • 15 dB Small Signal Gain at 2.0 GHz
  • 130 W Typical PSAT
  • 70% Efficiency at PSAT

PDF File Details

Part number:

CG2H40120

Manufacturer:

MACOM

File Size:

869.85kb

Download:

📄 Datasheet

Description:

28v rf power gan hemt. The CG2H40120 is an unmatched, gallium nitride (GaN) high electron mobility transistor (HEMT). The CG2H40120, operating from a 28 vol

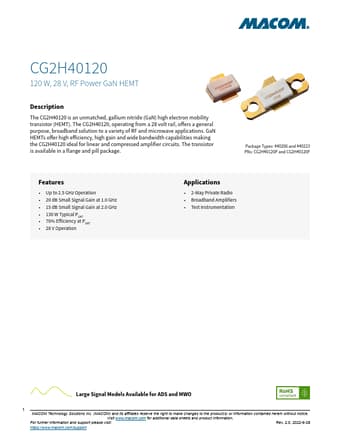

Datasheet Preview: CG2H40120 📥 Download PDF (869.85kb)
Page 2 of CG2H40120 Page 3 of CG2H40120

CG2H40120 Application

  • Applications GaN HEMTs offer high efficiency, high gain and wide bandwidth capabilities making the CG2H40120 ideal for linear and compressed amplif
