MRF392 Datasheet - MACOM

MRF392 - Broadband Power Transistor

at any time, without notice.

MACOM makes no commitment to update the information and shall have no responsibility whatsoever for conflicts or incompatibilities arising from future changes to its specifications and product descriptions.

No license, express or implied, by estoppels or otherwise, to a

MRF392 The RF Line Controlled “Q” Broadband Power Transistor 125W, 30 to 500MHz, 28V Designed primarily for wideband large signal output and driver amplifier stages in the 30 to 500 MHz frequency range.

Product Image Specified 28 V, 400 MHz characteristics Output power = 125 W Typical gain = 10 dB Efficiency = 55% (typ.) Built in input impedance matching networks for broadband operation Push pull configuration reduces even numbered harmonic

MRF392-MACOM.pdf

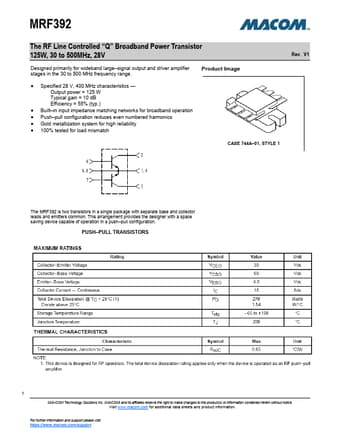

Preview of MRF392 PDF
MRF392 Datasheet Preview Page 2 MRF392 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF392

Manufacturer:

MACOM

File Size:

679.91 KB

Description:

Broadband power transistor.
