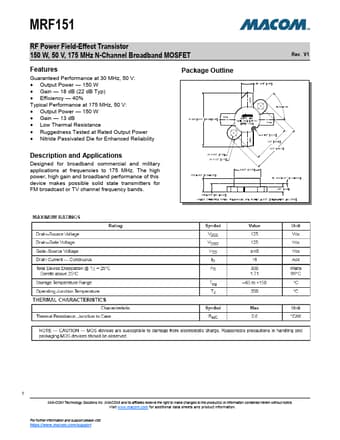

Part number: MRF151
Manufacturer: MACOM
File Size: 839.37KB
Download: 📄 Datasheet
Description: RF Power Field-Effect Transistor
Guaranteed Performance at 30 MHz, 50 V:
* Output Power — 150 W
* Gain — 18 dB (22 dB Typ)
* Efficiency — 40% Typical Performance at 175 MHz, 50 V:
* Outpu.
Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and bro.
and Applications
Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performance of this device makes possible solid state transmitters for FM broadcast or TV channel frequenc.
