MRF134 - RF MOSFET

MRF134 Description

MRF134 The RF MOSFET Line: Broadband RF Power FET 5.0W, to 400MHz, 28V Designed for wideband large *signal amplifier and oscillator application.

MRF134 Applications

* up to 400 MHz range. N
* Channel enhancement mode
* Guaranteed 28V, 150 MHz performance Output power = 5.0 watts Minimum gain = 11 dB Efficiency = 55% (Typical)
* Small
* and large
* signal characterization
* Typical performance at 400 MHz, 28V, 5.0W Output = 10.6 dB g

📥 Download Datasheet

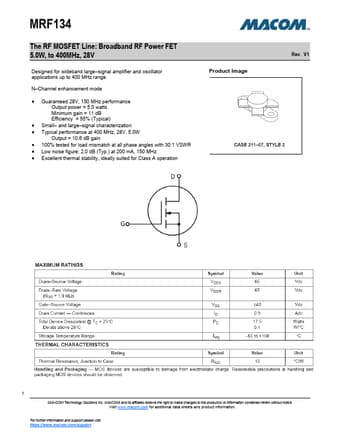

Preview of MRF134 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF134
Manufacturer
MACOM
File Size
0.96 MB
Datasheet
MRF134-MACOM.pdf
Description
RF MOSFET
