MRF154 - Broadband RF Power MOSFET

MRF154 Description

MRF154 Broadband RF Power MOSFET 600W, to 80MHz, 50V Designed primarily for linear large signal output stages in the 2.0 to 100 MHz frequency range.N.

MRF154 Applications

* GATE CHARACTERISTICS The gate of the RF MOSFET is a polysilicon material, and is electrically isolated from the source by a layer of oxide. The input resistance is very high
* on the order of 109 ohms
* resulting in a leakage current of a few nanoamperes. Gate control is achieved b

📥 Download Datasheet

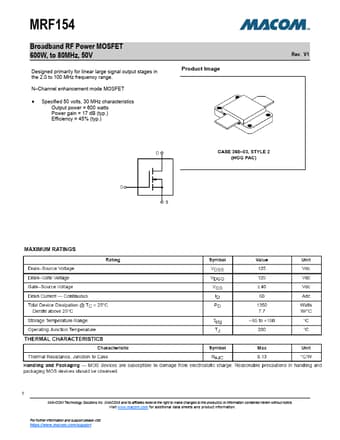

Preview of MRF154 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF154
Manufacturer
MACOM
File Size
730.32 KB
Datasheet
MRF154-MACOM.pdf
Description
Broadband RF Power MOSFET
