MRF1507T1, MRF1507 - LATERAL NCHANNEL BROADBAND RF POWER MOSFET

MRF1507T1 Description

( DataSheet : www.DataSheet4U.com ) MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF1507/D The RF MOSFET Line RF Power Field Effe.

MRF1507T1 Features

* 172
* 172
* 172
* 173
* 174
* 175
* 176 |S21| 16.58 8.37 4.08 2.60 1.84 1.38 0.86 0.64 0.49 0.36 S21 ∠φ 98 88 76 68 61 54 44 38 33 29 |S12| 0.03 0.03 0.02 0.02 0.02 0.02 0.02 0.01 0.01 0.01 S12 ∠φ 9 1
* 8
* 13
* 17
* 20

MRF1507T1 Applications

* at frequencies to 520 MHz. The high gain and broadband performance of this device makes it ideal for large
* signal, common source amplifier applications in 7.5 volt portable FM equipment.
* Specified Performance @ 520 MHz, 7.5 Volts Output Power
* 8 Watts Power Gain

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MRF1507T1, MRF1507. Please refer to the document for exact specifications by model.

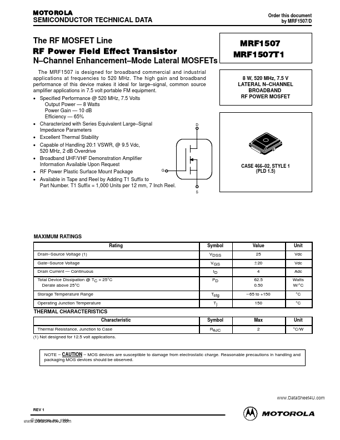

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MRF1507T1, MRF1507
Manufacturer
Motorola
File Size
221.73 KB
Datasheet
MRF1507_Motorola.pdf
Description
LATERAL NCHANNEL BROADBAND RF POWER MOSFET
Note
This datasheet PDF includes multiple part numbers: MRF1507T1, MRF1507.
Please refer to the document for exact specifications by model.
