MRF150 Datasheet - Tyco Electronics

MRF150 N-CHANNEL MOS LINEAR RF POWER FET

( DataSheet : www.DataSheet4U.com ) SEMICONDUCTOR TECHNICAL DATA Order this document by MRF150/D The RF MOSFET Line RF Powe r Field-E ffec t Transistor N Channel Enhancement Mode Designed primarily for linear large signal output stages up to 150 MHz frequency range. Specified 50 Volts, 30 MHz Characteristics Output Power = 150 Watts Power Gain = 17 dB (Typ) Efficiency = 45% (Typ) Superior High Order IMD IMD(d3) (150 W PEP) <.

MRF150_TycoElectronics.pdf

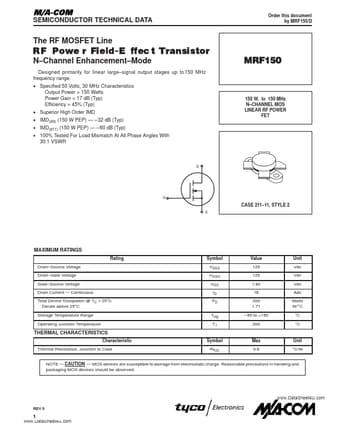

Preview of MRF150 PDF
MRF150 Datasheet Preview Page 2 MRF150 Datasheet Preview Page 3

Datasheet Details

Part number:

MRF150

Manufacturer:

Tyco Electronics

File Size:

234.13 KB

Description:

N-channel mos linear rf power fet.
