MRF15030 - RF POWER TRANSISTOR

Features

  • C4 C5, C12 C6, C11 C7, C9 C8, C10 C13 L1, L2 N1, N2 Long Bead, Fair Rite Short Bead, Fair Rite 100 µF, Electrolytic Capacitor, Mallory 0.1 µF, Chip Capacitor, Kemit 1.3 pF, B Case Chip Capacitor, ATC 18 pF, B Case Chip Capacitor, ATC 1800 pF, Chip Capacitor, Kemit 0.8 to 8 pF, Variable Capacitor, Johanson 51 pF, Chip Capacitor, Murata Erie 470 µF, Electrolytic Capacitor, Mallory 3 Turn, 20 AWG, 0.126″ ID Choke Type N Flange Mount RF Connector, Omni Spectra Q1 Q2 R1 R2 R3 R4 R5 R6 R7 R8.

📥 Download Datasheet

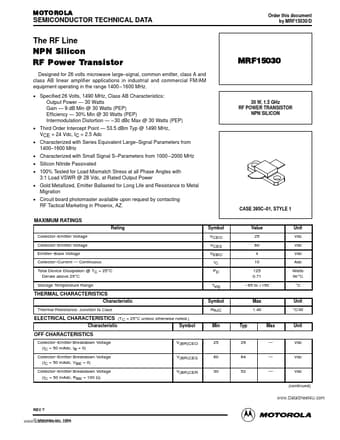

Datasheet preview – MRF15030

Datasheet Details

Part number MRF15030
Manufacturer Motorola
File Size 184.95 KB
Description RF POWER TRANSISTOR
Datasheet download datasheet MRF15030 Datasheet
Additional preview pages of the MRF15030 datasheet.

📁 Similar Datasheet

  • MRF150 - N-CHANNEL MOS LINEAR RF POWER FET (Tyco Electronics)
  • MRF150 - SILICON RF POWER MOSFET (Advanced Semiconductor)
  • MRF150 - RF Power FET (MA-COM)
  • MRF151 - RF Power Field-Effect Transistor (MACOM)
  • MRF151 - N-CHANNEL BROADBAND RF POWER MOSFET (Tyco Electronics)
  • MRF1513NT1 - RF Power Field Effect Transistor N-Channel Enhancement Mode Lateral MOSFET (Freescale Semiconductor)
  • MRF1517NT1 - RF Power Field Effect Transistor (Freescale Semiconductor)
  • MRF151A - RF Power FET (MA-COM)
  • MRF151A - RF Power Field-Effect Transistor (Tyco Electronics)
  • MRF151G - RF Power Field-Effect Transistor (MACOM)
Other Datasheets by Motorola
  • MRF150 - N-CHANNEL MOS LINEAR RF POWER FET
  • MRF1500 - MICROWAVE POWER TRANSISTOR
  • MRF15060 - RF POWER BIPOLAR TRANSISTORS
  • MRF15060S - RF POWER BIPOLAR TRANSISTORS
  • MRF1507 - LATERAL NCHANNEL BROADBAND RF POWER MOSFET
  • MRF1507T1 - LATERAL NCHANNEL BROADBAND RF POWER MOSFET
  • MRF15090 - RF POWER TRANSISTOR
  • MRF151 - N-CHANNEL BROADBAND RF POWER MOSFET

Full PDF Text Transcription

Click to expand full text
( DataSheet : www.DataSheet4U.com ) MOTOROLA SEMICONDUCTOR TECHNICAL DATA Order this document by MRF15030/D The RF Line NPN Silicon RF Power Transistor Designed for 26 volts microwave large–signal, common emitter, class A and class AB linear amplifier applications in industrial and commercial FM/AM equipment operating in the range 1400 – 1600 MHz. • Specified 26 Volts, 1490 MHz, Class AB Characteristics: Output Power — 30 Watts Gain — 9 dB Min @ 30 Watts (PEP) Efficiency — 30% Min @ 30 Watts (PEP) Intermodulation Distortion — – 30 dBc Max @ 30 Watts (PEP) • Third Order Intercept Point — 53.5 dBm Typ @ 1490 MHz, VCE = 24 Vdc, IC = 2.
