MRF1513NT1 - RF Power Field Effect Transistor N-Channel Enhancement Mode Lateral MOSFET

Features

  • x 0.080″ Microstrip 1.034″ x 0.080″ Microstrip 0.202″ x 0.080″ Microstrip 0.260″ x 0.223″ Microstrip 1.088″ x 0.080″ Microstrip 0.149″ x 0.080″ Microstrip 0.171″ x 0.080″ Micr.

📥 Download Datasheet

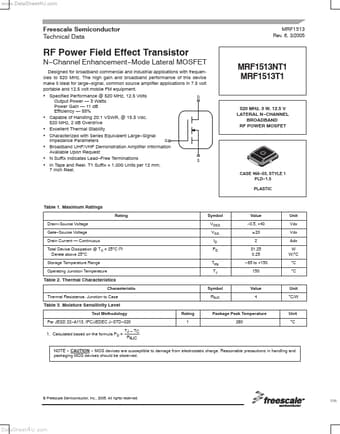

Datasheet preview – MRF1513NT1

📁 Similar Datasheet

  • MRF1513T1 - RF POWER FIELD EFFECT TRANSISTORS N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFET (Motorola)
  • MRF151 - RF Power Field-Effect Transistor (MACOM)
  • MRF151 - N-CHANNEL BROADBAND RF POWER MOSFET (Tyco Electronics)
  • MRF151 - N-CHANNEL BROADBAND RF POWER MOSFET (Motorola)
  • MRF1511NT1 - RF POWER FIELD EFFECT TRANSISTORS N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFET (Motorola)
  • MRF1511T1 - RF Power Field Effect Transistor (Motorola)
  • MRF1517T1 - RF POWER FIELD EFFECT TRANSISTORS N-CHANNEL ENHANCEMENT-MODE LATERAL MOSFET (Motorola)
  • MRF1518NT1 - RF Power Field Effect Transistor (Motorola)
  • MRF1518T1 - RF Power Field Effect Transistor (Motorola)
  • MRF1518T1 - The RF MOSFET Line RF POWER FIELD EFFECT TRANSISTOR (Motorola)
Other Datasheets by Freescale Semiconductor
  • MRF1517NT1 - RF Power Field Effect Transistor
  • MRF1550FNT1 - RF Power Field Effect Transistors N-Channel Enhancement-Mode Lateral MOSFETs
  • MRF1550NT1 - RF Power Field Effect Transistors N-Channel Enhancement-Mode Lateral MOSFETs
  • MRF1570FNT1 - RF Power Field Effect Transistors
  • MRF1570NT1 - RF Power Field Effect Transistors
  • MRF18030BLR3 - RF Power Field Effect Transistors N-Channel Enhancement-Mode Lateral MOSFETs
  • MRF18030BLSR3 - RF Power Field Effect Transistors N-Channel Enhancement-Mode Lateral MOSFETs
  • MRF18060ALR3 - RF Power Field Effect Transistors

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com Freescale Semiconductor Technical Data MRF1513 Rev. 6, 3/2005 RF Power Field Effect Transistor N−Channel Enhancement−Mode Lateral MOSFET Designed for broadband commercial and industrial applications with frequencies to 520 MHz. The high gain and broadband performance of this device make it ideal for large−signal, common source amplifier applications in 7.5 volt portable and 12.5 volt mobile FM equipment. • Specified Performance @ 520 MHz, 12.5 Volts D Output Power — 3 Watts Power Gain — 11 dB Efficiency — 55% • Capable of Handling 20:1 VSWR, @ 15.
