MRF151G Datasheet, transistor equivalent, MACOM

MRF151G Features

• Transistor Guaranteed Performance at 175 MHz, 50 V:
• Output Power
    – 300 W
• Gain
    – 14 dB (16 dB Typ)
• Efficiency
    – 50%

PDF File Details

Part number:

MRF151G

Manufacturer:

MACOM

File Size:

877.96kb

Download:

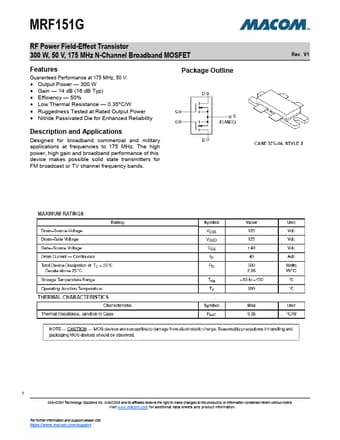

📄 Datasheet

Description:

Rf power field-effect transistor. and Applications Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and

MRF151G Application

• Applications Designed for broadband commercial and military applications at frequencies to 175 MHz. The high power, high gain and broadband performa
