WGC22630 Datasheet, Amplifier, MACOM

WGC22630 Features

  • Amplifier
  • GaN on SiC HEMT Technology
  • Pulsed CW Performance: 2155 MHz, 48 V, 40 µs Pulse Width, 10% Duty Cycle, Combined Outputs
  • Output Power @ P4dB = 630 W

PDF File Details

Part number:

WGC22630

Manufacturer:

MACOM

File Size:

910.22kb

Download:

📄 Datasheet

Description:

Thermally enhanced gan amplifier. The WGC22630 is a 630 W (P4dB) GaN on Silicon Carbide HEMT amplifier designed for use in multistandard cellular power amplifier appli

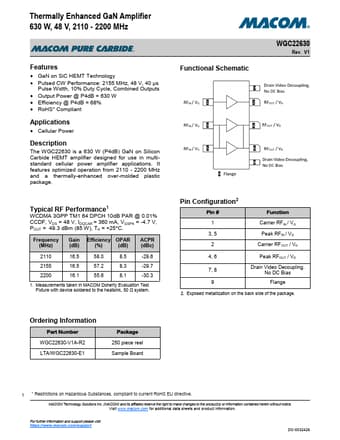

Datasheet Preview: WGC22630 📥 Download PDF (910.22kb)
Page 2 of WGC22630 Page 3 of WGC22630

WGC22630 Application

  • Applications
  • Cellular Power Description The WGC22630 is a 630 W (P4dB) GaN on Silicon Carbide HEMT amplifier designed for use in multistan
