SB250, SB220 2 Amp Schottky Rectifier

SB250 Description

MCC TM Micro Commercial Components    omponents 20736 Marilla Street Chatsworth    !"# $ %    !"#.

SB250 Features

* Lead Free Finish/Rohs Compliant (Note1) ("P"Suffix designates Compliant. See ordering information) x Schottky Barrier Rectifier x Guard Ring Protection x High Surge Current Capability
* Epoxy meets UL 94 V-0 flammability rating
* Moisture Sensitivity Level 1 x For Use i

SB250 Applications

* Halogen free available upon request by adding suffix "-HF" Maximum Ratings x Operating Temperature: -65к to +150к x Storage Temperature: -65к to +150к x Maximum Thermal Resistance: 15K/W Junction To Lead 50K/W Junction to Ambient
* SB220 Thru SB260 2 Amp Schottky Rectifier 20V-60V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SB250, SB220. Please refer to the document for exact specifications by model.

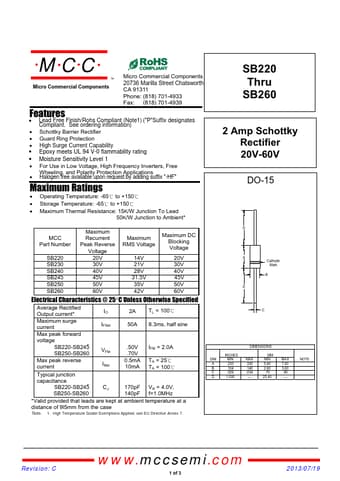

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SB250, SB220
Manufacturer
MCC
File Size
228.32 KB
Datasheet
SB220-MCC.pdf
Description
2 Amp Schottky Rectifier
Note
This datasheet PDF includes multiple part numbers: SB250, SB220.
Please refer to the document for exact specifications by model.
