SM13, SM10 SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR

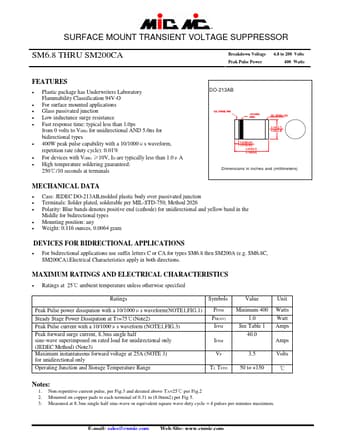

📥 Download Datasheet Datasheet Preview Page 1

Description

SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR SM6.8 THRU SM200CA Breakdown Voltage Peak Pulse Power 6.8 to 200 Volts 400 Watts .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SM13, SM10. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
SM13, SM10
Manufacturer
MIC
File Size
56.33 KB
Datasheet
SM10-MIC.pdf
Description
SURFACE MOUNT TRANSIENT VOLTAGE SUPPRESSOR
Note
This datasheet PDF includes multiple part numbers: SM13, SM10.
Please refer to the document for exact specifications by model.

Features

* Plastic package has Underwriters Laboratory Flammability Classification 94V-O

Applications

* Glass passivated junction
* Low inductance surge resistance
* Fast response time: typical less than 1.0ps from 0 volts to V(BR) for unidirectional AND 5.0ns for bidirectional types
* 400W peak pulse capability with a 10/1000μs waveform, repetition rate (duty cycle):
