SYS32256LK-15

256K x 32 SRAM MODULE

SYS32256LK-15 Features

* Access Times of 12/15/17 ns. 64 Pin ZIP & SIMM pinouts. 5 Volt Supply ± 10%. Power Dissipation : Operating (32bit mode) 9.0 W (maximum). Standby (CMOS) -L 1.3 W (maximum). Completely Static Operation. Equal Access and Cycle Times. All Inputs and Outputs Direct

SYS32256LK-15 General Description

The SYS32256 is a plastic 8Mbit Static RAM Module offered in Industry Standard 64 pin ZIP and 64 lead SIMM package, organised as 256K x 32. The module utilises eight fast 256K x 4 SRAMs housed in SOJ packages, and uses double sided surface mount techniques, to achieve a very high density module. Fou.

SYS32256LK-15 Datasheet (92.23 KB)

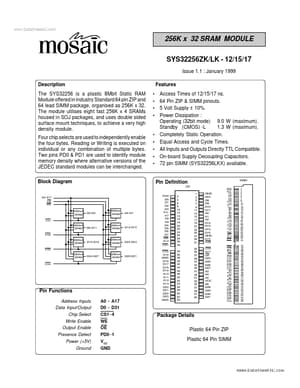

Preview of SYS32256LK-15 PDF

Datasheet Details

Part number:

SYS32256LK-15

Manufacturer:

MOSAIC

File Size:

92.23 KB

Description:

256k x 32 sram module.
