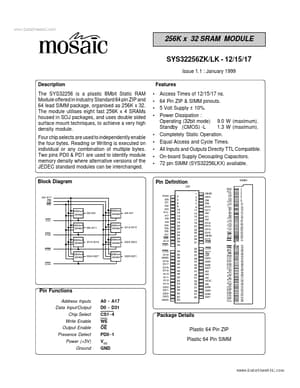

datasheet Preview Page 1 from Datasheet4u.com

SYS32256ZK-15, SYS32256LK-12 256K x 32 SRAM MODULE

www.DataSheet4U.com 256K x 32 SRAM MODULE SYS32256ZK/LK - 12/15/17 Issue 1.1 : January 1999 .
The SYS32256 is a plastic 8Mbit Static RAM Module offered in Industry Standard 64 pin ZIP and 64 lead SIMM package, organised as 256K x 32.

SYS32256LK-12_MOSAIC.pdf

SYS32256ZK-15 Datasheet Preview — This datasheet PDF includes multiple part numbers: SYS32256ZK-15, SYS32256LK-12. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

SYS32256ZK-15, SYS32256LK-12

Manufacturer:

MOSAIC

File Size:

92.23 KB

Description:

256K x 32 SRAM MODULE

Note:

This datasheet PDF includes multiple part numbers: SYS32256ZK-15, SYS32256LK-12.
Please refer to the document for exact specifications by model.

Features

* Access Times of 12/15/17 ns. 64 Pin ZIP & SIMM pinouts. 5 Volt Supply ± 10%. Power Dissipation : Operating (32bit mode) 9.0 W (maximum). Standby (CMOS) -L 1.3 W (maximum). Completely Static Operation. Equal Access and Cycle Times. All Inputs and Outputs Direct
