NB632 High Effeciency 4A 24V Synchronous Step-down Converter

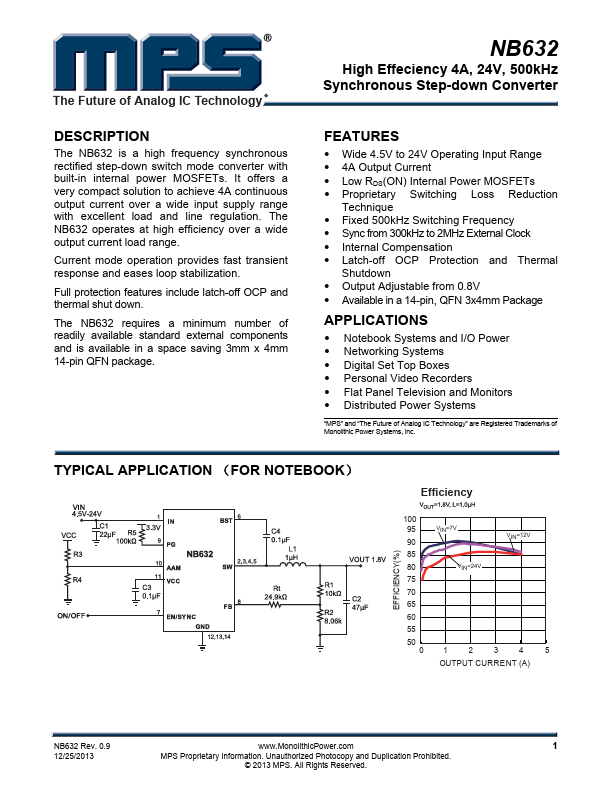

📥 Download Datasheet Datasheet Preview Page 1

Description

The Future of Analog IC Technology .
The NB632 is a high frequency synchronous rectified step-down switch mode converter with built-in internal power MOSFETs.

📥 Download Datasheet

Preview of NB632 PDF

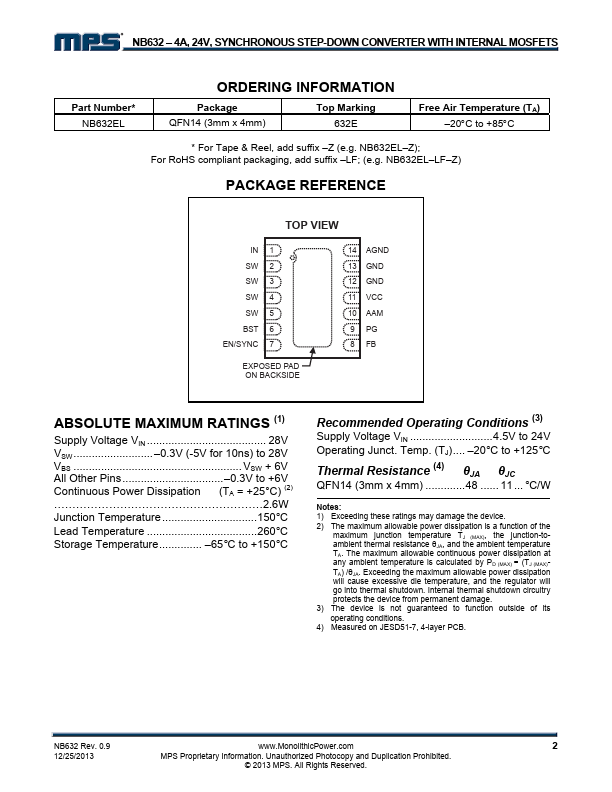

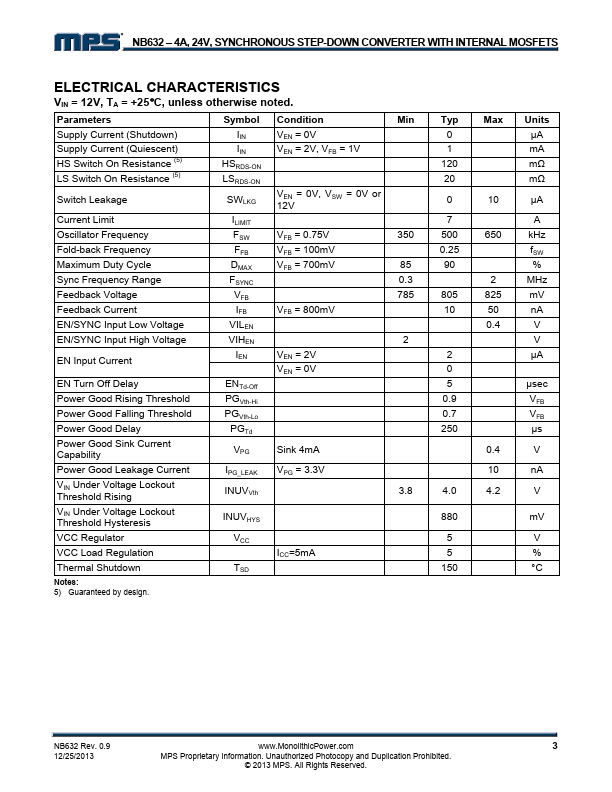

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
NB632
Manufacturer
MPS
File Size
412.66 KB
Datasheet
NB632-MPS.pdf
Description
High Effeciency 4A 24V Synchronous Step-down Converter

Features

* include latch-off OCP and thermal shut down. The NB632 requires a minimum number of readily available standard external components and is available in a space saving 3mm x 4mm 14-pin QFN package. NB632 High Effeciency 4A, 24V, 500kHz Synchronous Step-down Converter FEATURES
* Wide 4.5V to 24V O

Applications

* Notebook Systems and I/O Power
* Networking Systems
* Digital Set Top Boxes
* Personal Video Recorders
* Flat Panel Television and Monitors
* Distributed Power Systems “MPS” and “The Future of Analog IC Technology” are Registered Trademarks of Monolithic Power Systems, Inc.
