NB6L11M - Differential CML Fanout Buffer

Product Overview

ON Semiconductor

Datasheet Details

Part number	NB6L11M
Manufacturer	ON Semiconductor
File Size	233.40 KB
Description	Differential CML Fanout Buffer
Datasheet	NB6L11M Datasheet

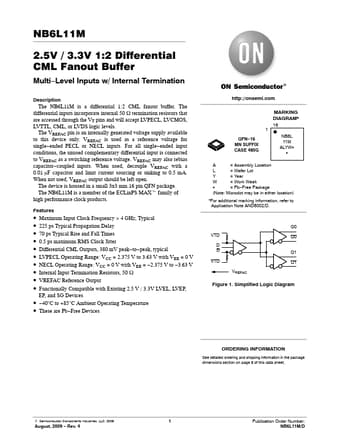

Additional preview pages of the NB6L11M datasheet.

Product details

Description

The NB6L11M is a differential 1:2 CML fanout buffer. ended PECL or NECL inputs. ended input conditions, the unused complementary differential input is conne

Features

Maximum Input Clock Frequency > 4 GHz, Typical.
225 ps Typical Propagation Delay.
70 ps Typical Rise and Fall Times.
0.5 ps maximum RMS Clock Jitter.
Differential CML Outputs, 380 mV peak.
to.
peak, typical.
LVPECL Operating Range: VCC = 2.375 V to 3.63 V with VEE = 0 V.
NECL Operating Range: VCC = 0 V with VEE =.
2.375 V to.
3.63 V.
Internal Input Termination Resistors, 50 W.
VREFAC R.
