NB6L14 Datasheet, Buffer, ON Semiconductor

NB6L14 Features

  • Buffer
  • Input Clock Frequency > 3.0 GHz
  • Input Data Rate > 2.5 Gb/s
  • < 20 ps Within Device Output Skew
  • 350 ps Typical Propagation Delay
  • 150 ps Ty

PDF File Details

Part number:

NB6L14

Manufacturer:

ON Semiconductor ↗

File Size:

282.83kb

Download:

📄 Datasheet

Description:

Differential 1:4 lvpecl fanout buffer. The NB6L14 is a 3.0 GHz differential 1:4 LVPECL clock or data fanout buffer. The differential inputs incorporate internal 50 W termin

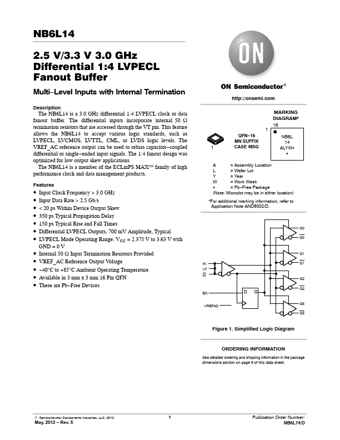

Datasheet Preview: NB6L14 📥 Download PDF (282.83kb)
Page 2 of NB6L14 Page 3 of NB6L14

NB6L14 Application

  • Applications The NB6L14 is a member of the ECLinPS MAX™ family of high performance clock and data management products. Features
  • Input Clo
